Easily Seals These Typical Case Styles
RSC
FTHS

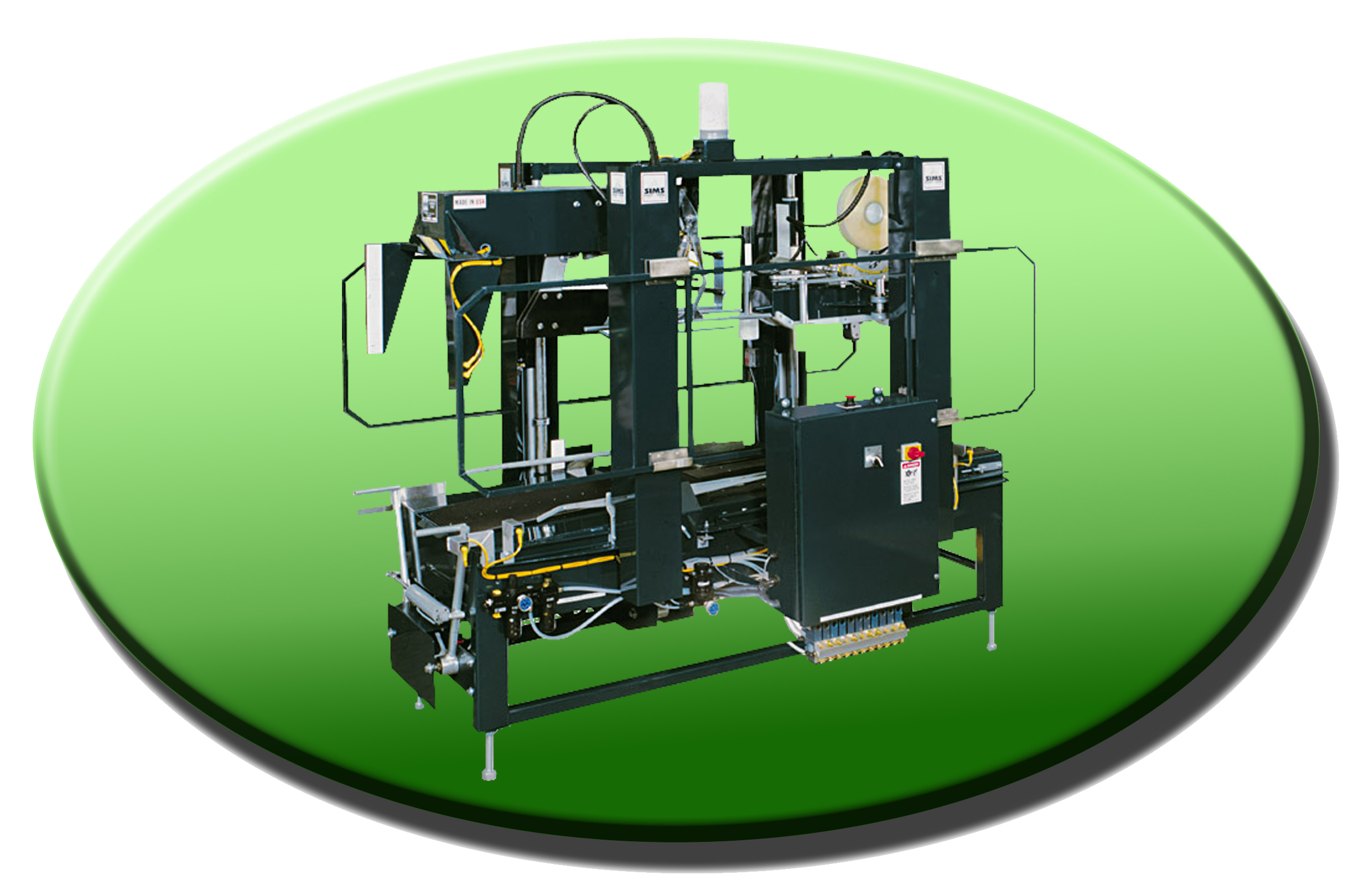

Model T-750 Random Case Sealer
Video
(Regular Slotted Container)
(Full Telescoping Half Slotted Container)

In today's fast-paced world, Sims Case Sealers are the smart choice for your packing and shipping needs. When a high performance case sealer is a must, the Sims Model 750 Automatic Random Case Sealing Machine excels in performance.
Proven reliable, the Model 750 is specially designed for both light and heavy industrial applications. The sturdy welded construction ensures strength and durability. It is the perfect choice for a demanding line requiring flexibility and intelligence.

The SimsCase Sealing Machine can seal nearly any package regardless of size and form. Intelligent features of the Model 750 help maximize the sealer's performance so that a quick, professional and secure seal is applied every time.

The Sims Case Sealing Machine can meet your most demanding requirements. It will prove its worth in your plant.
Download the Case Sealer Questionnaire
Features and Advantages:
Fully automatic random sealer
  • Patented Sims tape heads
  • Speeds up to 15 cases per minute
  • Belt drive conveyor (non-slip and quiet)
  • Top belt drive in tape carraige section (optional)
  • Top flap folders or plows (per carton requirement)
  • Pnuematic side rollers for squaring top flaps
  • Self centering side rails
  • Programmable logic controller
  • Fault detection and warning light (Light flashes when tape is low; machine
  • stops if tape not cut or runs out)
  • Carriages and side rails retract for easy carton removal
  • Operator control panel available on either side
  • Emergency stop switches on both sides
  • Top and/or bottom taping
  • Minor maintenance requiring less down time
  • Installation and service video included
    		•
    Specifications:
    DIMENSIONS: 80" long x 48" wide x 72" high
    CONVEYOR HEIGHT: 24" minimum 32" maximum
    CONSTRUCTION:
    Extra strength welded and painted tubular steel for durability Painted or stainless
    ELECTRICAL: 208/230/480V, 60 HZ, 3 phase
    CONTROL LOGIC: Programmable logic controller
    MOTOR: 3/4 HP
    AIR REQUIREMENTS: 7 C.F.M
    TAPE HEAD: Sims Patented Tape Head
    TAPE WIDTH: 2" standard, 3" optional
    TAPE ROLL: Maximum diameter 14"
    BELT SPEED: 115 feet per minute is standard (higher belt speeds available)
    CASE SPEEDS: Up to 15cases per minute
    CASE SIZE CAPACITY:

    Minimum 8" L x 8" W x 4" H
    Maximum 25" L x 22" W x 20" H
