Easily Seals These Typical Case Styles
RSC
FTHS

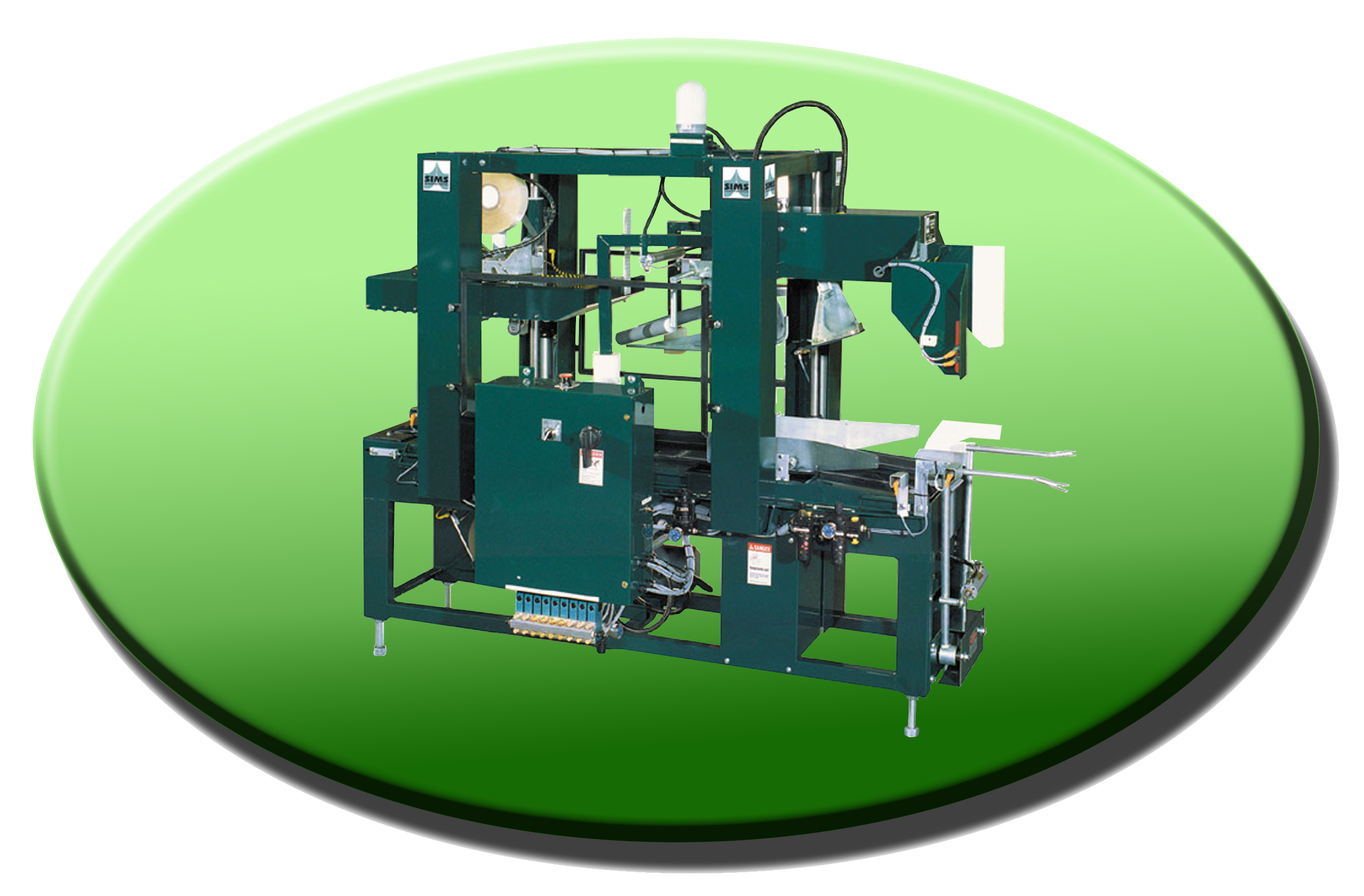

Model T-660 Random Case Sealer
Video
(Regular Slotted Container)
(Full Telescoping Half Slotted Container)

In today's fast-paced world, Sims Case Sealers are the smart choice for your packing and shipping needs. When a high performance case sealer is a must, the Sims Model 660 Automatic Random Case Sealing Machine excels in performance.
Proven reliable, the Model 660 is specially designed for both light and heavy industrial applications. The sturdy welded construction ensures strength and durability. It is the perfect choice for a demanding line requiring flexibility and intelligence.

The SimsCase Sealing Machine can seal nearly any package regardless of size and form. Intelligent features of the Model 660 help maximize the sealer's performance so that a quick, professional and secure seal is applied every time.

The Sims Case Sealing Machine can meet your most demanding requirements. It will prove its worth in your plant.


Download the Case Sealer Questionnaire
Features and Advantages:
  • Fully automatic random sealer
  • Patented Sims tape heads
  • Speeds up to 20 cases per minute
  • Speeds up to 25 plus possible in fixed mode
  • Belt drive conveyor (non-slip and quiet)
  • Adjustable pneumatic compression while taping
  • Pnuematic side rollers for squaring top flaps
  • Self centering lid lifter for over filled cartons
  • Automatic Indexing
  • Programmable logic controller
  • Fault detection and warning light (Light flashes when tape is low;
  • machine stops if tape not cut or runs out)
  • Carriages retract for easy carton removal
  • Operator control panel available on either side
  • Emergency stop switches on both sides
  • Top and/or bottom taping
  • Minor maintenance requiring less down time
  • Installation and service video included
  • Machine may be operated as top & bottom, top only, or bottom only sealer
  • Options: Hot Melt or Tape Closure for tape flaps only
Specifications:
DIMENSIONS: 80" long x 42" wide x 72" high
CONVEYOR HEIGHT: 26" minimum 32" maximum
CONSTRUCTION:
Extra strength welded and painted tubular steel for durability Painted or stainless
ELECTRICAL: 208/230/480V, 60 HZ, 3 phase, 110V, 1 phase
CONTROL LOGIC: Programmable logic controller
MOTOR: 3/4 HP
AIR REQUIREMENTS: 3 C.F.M
TAPE HEAD: Sims Patented Tape Head
TAPE WIDTH: 2" standard, 3" optional
TAPE ROLL: Maximum diameter 14"
BELT SPEED: 125 feet per minute is standard (higher belt speeds available)
CASE SPEEDS: Up to 25cases per minute
CASE SIZE CAPACITY:

Minimum 14" L x 11" W x 6" H
Maximum 22" L x 16" W x 15" H
