Easily Seals These Typical Case Styles

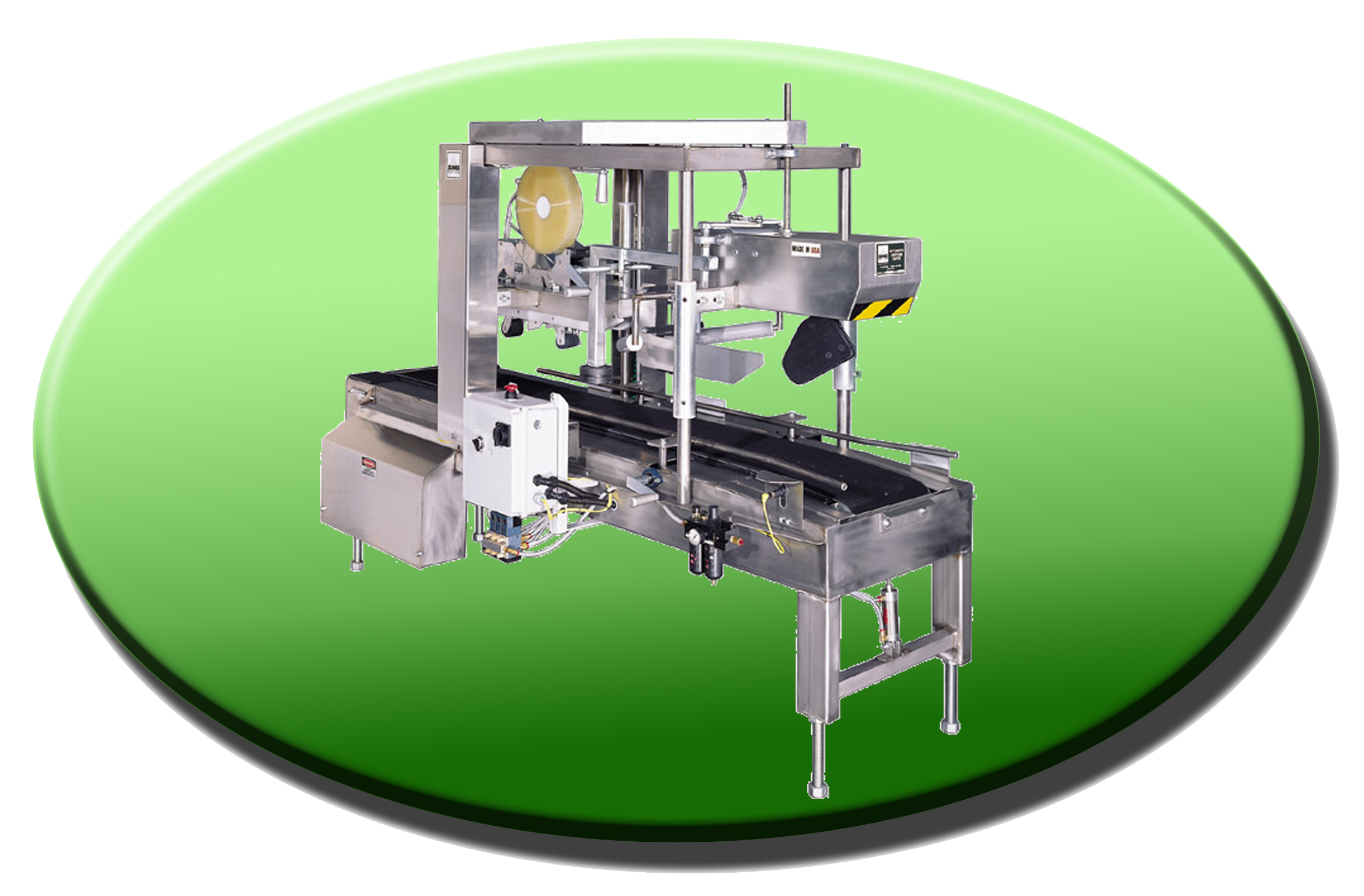

Model T-500 Case Sealer
(Regular Slotted Container)
(Full Telescoping Half Slotted Container)

The Sims T-500 Fully Automatic Uniform Carton Taping Machine is built to meet the demands of today's industries and to function dependably -- long into the future. This carton taping machine has been designed to work fast, seal consistently, load easily, and require minimum maintenance.
The Sims patented tape head has become a proven industry advantage by sealing faster and more consistently than the competition.

If you need flexibility, speed, reliability, and endurance, then the Sims T-500 is the carton taping machine to buy.

Features and Advantages:
Download the Case Sealer Questionnaire
  • Fully automatic uniform sealer
  • Speeds up to 30 cases per minute
  • Automatic indexing
  • Belt drive conveyor (non-slip and quiet)
  • Floating tape carriage for over filled or crown cartons
  • Compression while taping
  • Top and bottom taping or top taping only
  • Side rollers for squaring top flaps
  • Easy manual crank for height and width adjustment
  • Manual crank adjustment available on either side
  • Electrical control panel available on either side
  • PLC control
  • Emergency stop buttons both sides
  • Fault detection and warning light
  • Painted steel (optional stainless steel)
  • Welded steel construction
  • Electro plated components
  • Easily adapts to existing conveyor systems
  • Minor maintenance requiring less down time
  • Specifications:
    DIMENSIONS: 94" long x 47" wide x 75" high
    CONVEYOR HEIGHT: 24" minimum 33" maximum
    Extra strength welded and painted tubular steel for durability Painted or stainless
    ELECTRICAL: 208/230/480V, 60 HZ, 3 phase, 110V, 1 phase
    CONTROL LOGIC: Programmable logic controller
    MOTOR: 3/4 HP
    TAPE HEAD: Sims Patented Tape Head
    TAPE WIDTH: 2" standard, 3" optional
    TAPE ROLL: Maximum diameter 14"
    BELT SPEED: 114 feet per minute is standard (higher belt speeds available)
    CASE SPEEDS: Up to 30cases per minute

    Minimum 8" L x 8" W x 4" H
    Maximum 18" L x 16" W x 14" H
